Product introduction：
This machine is a continuous penetrating flow drying equipment applied for drying pieces strip and particles state materials with good ventilation. The machine is suitable for the materials such as dewatering vegetable, herbal medicine of traditional Chinese medicine and others, for which the water contents are high and high drying temperature is not allowed. The machine owns the advantages, of fast drying speed, high evaporation capacity and good product quality. The de-watered & filtered cake state paste material should be made into particles or strips before drying process.
Descriptions：

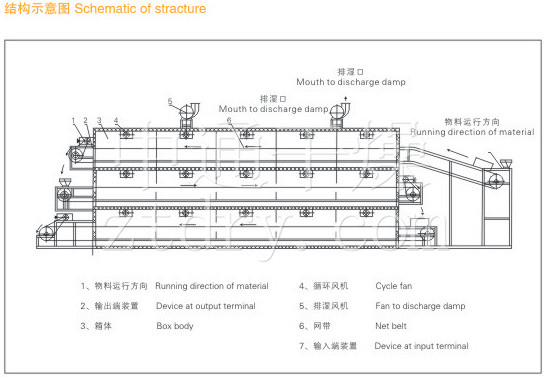

DW series multi-layer mesh-belt conveyor dryer is suitable for large-scale production of difficult-to-dry materials with low production rate. It has compact structure, small floor space, simple operation, convenient maintenance and stable operation. It can be designed into different hot air circulation drying forms according to the drying characteristics of the materials. It is an extension and improvement of the hot air circulation oven, and is widely used in metallurgical additives, chemicals, food, packaging and other fields. With the advancement of technology and the improvement of product technology content, multi-layer mesh-belt dryers have the ability to meet large-scale production, diversification, centralized control and continuous production. It has the advantages of high efficiency, energy saving and easy management.
| Model | DW3-1.2-8 | DW3-1.2-10 | DW3-1.6-8 | DW3-1.6-10 | DW3-2-8 | DW3-2-8 | ||
| Quantity of unit | 4X3 | 5X3 | 4X3 | 5X3 | 4X3 | 5X3 | ||
| Length of drying section m | 24 | 30 | 24 | 30 | 24 | 30 | ||
| Thickness of raw material layer mm | 10-80 | |||||||
| Operation temperature℃ | 50~140 | |||||||
| Steam pressure Mpa | 0.2~0.8 | |||||||
| Steam consume kg/h | 360-600 | 420-720 | 450-840 | 480-960 | 480-960 | 630-1350 | ||
| Heat exchange area m2 | 816 | 1020 | 1056 | 1320 | 1344 | 1680 | ||
|
Drying efficiency kgH2O/h |
150-450 | 220-550 | 240-600 | 280-750 | 280-750 | 350-900 | ||
| Total power of fan KW | 30.8 | 37.4 | 42 | 51 | 56 | 68 | ||
| Total power of equipmnet KW | 35.3 | 41.9 | 46.5 | 55.5 | 60.5 | 72.5 | ||
| Overall dimensions m | 9.77X2.2X4.5 | 11.77X2.2X4.5 | 9.77X2.6X4.5 | 11.77X2.6X4.7 | 9.77X3.06X4.9 | 11.77X3.06X4.9 | ||
