GSL Series High-Speed Mixing Granulator

Details

Descriptions
GSL high speed mixer granulator is a high efficiency equipment that can mix different powder materials and granulate granule in one procedure. It is wide used for pharmaceutical industry, foodstuff industry and chemical industry, etc. Features:
● The machine adopts horizontal barre (cone) structure. Its structure is reasonable.
● The inner surface of equipment has no dead corner. It works at sealed state and conforms to the requirements of GMP.
● Short granulating time, high efficiency and energy saving.
● The character of granule is uniform and the fluidization of granule is good. It provides ideal granule material to tablet pressing procedure.
● Compared with traditional process, it can reduce 25% of binder and shorten drying time too.
● Each batch needs 2 minutes to dry mixing and 1~4minutes to granulating. Compared with traditional process, its efficiency can raise 4~5 times.
● Whole operation has strict safe protective measures.

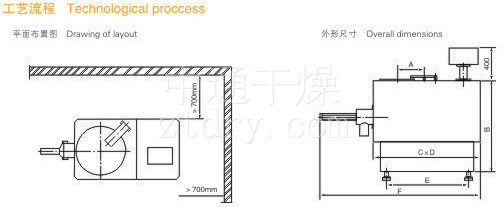

Model A B C×D E F
10 270 750 1000×650 745 1350
50 320 950 1250×800 970 1650
150 420 1000 1350×800 1050 1750
200 500 1100 1650×940 1450 2050
250 500 1160 1650×940 1400 2260
300 550 1200 1700×1000 1400 2310
400 670 1300 1860×1100 1550 2410
600 750 1500 2000×1230 1750 2610

Name/Model 10 50 150 200 250 300 400 600
Volume L 10 50 150 200 250 300 400 600
Yield kg/batch 3 15 50 80 100 130 200 280
Mixing speed r.p.m 300/600 200/400 180/270 180/270 180/270 140/220 106/155 80/120
Mixing power kw 1.5/2.2 4/5.5 6.5/8 9/11 9/11 13/16 18.5/22 22/30
Cutting speed r.p.m 1500/3000 1500/3000 1500/3000 1500/3000 1500/3000 1500/3000 1500/3000 1500/3000
Cutting powerkw 0.85/1.1 1.3/1.8 2.4/3 4.5/5.5 4.5/5.5 4.5/5.5 6.5/8 9/11
Compressed air consumption m3/min 0.6 0.6 0.9 0.9 0.9 1.1 1.5 1.8
