Descriptions：

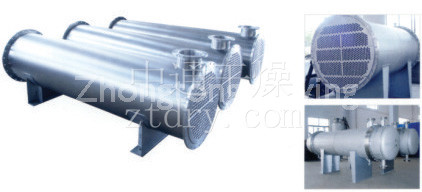

The coiled heat exchanger is such that is sealed at upper end and low end, and inside which there are different number and specification of pipes to form different heat exchange area of closed heat exchange The part touching heat is made with stainless steel and the other made of stainless steel 316L. Only adoption of the stainless steel 304 is also available The inner surface undergoes health grade mirror polishing he heat exchanger features simple structure, pleasant appearance, non-dead angle and easy clean, in compliance with GMP requirement, it is wide used for steam condensation, temperature decrease of thermal material and heating at the industries as pharmacy and chemistry.
Technical parameters:
|
Nominal diameter |
Num ber oft ube pas ses |
Tube quantity |
Exchanged heat area Cross-sectional area Range of channels Nominalvalue/Calculated value velocity 0.5m/sec volume m/hr |
Nominal pressure |
||||||
| Tube length(m) Carbon steel pipe ф25×2.5 | ||||||||||
| 1500 2000 3000 4000 6000 Stainless steel tube ф25×2 | ||||||||||
| 159 | Ⅰ | 14 | 1.5/1.62 |
2/2.17 |
3/3.27 | 0.0044/0.0049 |
7.92/8.82 |
0.25 | ||
| 219 | Ⅰ | 26 | 3/3.00 | 4/4.02 | 6/6.06 | 8/8.11 | 0.0082/0.0090 | 14.76/16.20 | 0.6 | |
| Ⅱ | 26 | 3/3.00 | 4/4.02 | 6/6.06 | 8/8.11 | 0.0041/0.0045 | 7.38/8.10 | 1.0 | ||
| 273 | Ⅰ | 44 | 5/5.08 | 7/6.18 | 10/10.26 |
14/13.72 |
21/20.63 |
0.0138/0.0152 | 24.84/27.36 | 1.6 |
| Ⅱ | 40 | 5/4.62 | 6/6.19 | 9/9.33 | 12/12.47 | 19/18.76 | 0.0063/0.0069 | 11.34/12.42 | 2.5 | |
| 325 | Ⅰ | 60 | 7/6.93 | 9/9.28 | 14/14.00 | 19/18.71 | 28/28.13 | 0.0188/0.0208 | 33.84/37.44 | 0.6 |
| Ⅱ | 56 |
6/6.47 |
9/8.66 | 13/13.06 | 17/17.46 | 26/26.26 | 0.0088/0.0097 | 15.84/17.46 | 1.0 | |
| 400 | Ⅰ | 119 | 14/13.74 | 18/18.41 | 28/27.76 | 37/37.10 | 55/55.8 | 0.0374/0.0412 | 67.32/74.16 | 1.6 |
| Ⅱ | 110 | 13/12.70 | 17/17.02 | 26/25.66 | 34/34.20 | 50/51.58 | 0.0173/0.0190 | 31.14/34.20 | 2.5 | |
| 500 | Ⅰ | 185 | 45/4.15 | 55/57.68 |
85/86.74 |
0.0581/0.0641 |
104.58/115.38 |
|||
| Ⅱ | 180 | 40/41.99 | 55/57.68 | 85/86.74 | 0.0283/0.0312 | 50.94/56.16 | ||||
| 600 | Ⅰ | 169 | 60/62.7 | 85/83.88 | 125/126.13 | 0.0845/0.0932 | 152.10/167.76 | |||
| Ⅱ | 266 | 60/62.05 | 80/82.94 | 125/14.72 | 0.0418/0.0461 | 75.24/82.98 | ||||
| 700 | Ⅰ | 379 | 90/88.41 | 120/118.17 | 175/177.71 | 0.0091/0.1313 | 214.38/236.34 | |||
| Ⅱ | 358 | 85/83.51 | 110/111.62 | 165/167.86 | 0.0562/0.0620 | 101.16/111.60 | ||||
| 800 | Ⅰ | 511 | 120/119.20 | 160/159.16 | 240/239.60 | 0.1605/0.1770 | 288.90/318.60 | |||
| Ⅱ | 488 | 115/113.83 | 150/152.16 | 230/228.81 | 0.0767/0.0845 | 138.06/152.10 | ||||
| 900 | Ⅰ | 649 | 150/151.39 | 200/202.36 | 305/304.3 | 0.2039/0.2248 | 397.02/404.46 | |||
| Ⅱ | 630 | 145/146.96 | 195/196.44 | 295/295.40 | 0.0990/0.1091 | 178.20/196.38 | ||||
| 1000 | Ⅰ | 805 | 185/187.78 | 250/251.00 | 375/377.45 | 0.2529/0.2788 | 455.22/501.84 | |||
| Ⅱ | 792 | 185/184.75 | 245/246.95 | 370/371.36 | 0.1244/0.1374 | 223.92/246.96 | ||||
